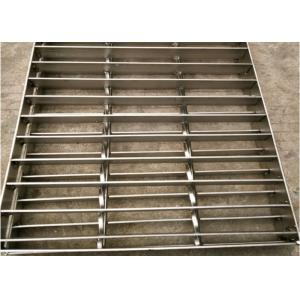

Rust Resistance Stainless Steel 304 Trench Drain Plain Bar Grating
Plain Steel bar grating description:
Steel Grating is made of flat steel and bars by welding with
certain distances. It goes through cutting, opening, edging and
other processes. The products enjoy the features of high strength,
light structure, high bearing, convenience for loading and other
properties. The hot dipped zinc coating gives the product excellent
anti-corrosion resistance.
Plain bar grating specifications:
| No. | Item | Description |
| 1 | Bearing Bar | 25x3, 25x4, 25x4.5, 25x5, 30x3, 30x4, 30x4.5, 30x5, 32x5, 40x5,
50x5, 65x5, 75x6, 75x10---100x10mm etc I bar: 25x5x3, 30x5x3, 32x5x3, 40x5x3 etc US standard: 1''x3/16'', 1 1/4''x3/16'', 1 1/2''x3/16'', 1''x1/4'',
1 1/4''x1/4'', 1 1/2''x1/4'', 1''x1/8'', 1 1/4''x1/8'', 1
1/2''x1/8'' etc |
| 2 | Bearing Bar Pitch | 12.5, 15, 20, 23.85, 25, 30, 30.16, 30.3, 32.5, 34.3, 35, 38.1, 40,
41.25, 60, 80mm etc US standard: 19-w-4, 15-w-4, 11-w-4, 19-w-2, 15-w-2 etc. |
| 3 | Twisted Cross Bar Pitch | 38.1, 50, 60, 76, 80, 100, 101.6, 120mm, 2'' & 4'' e tc |
| 4 | Material Grade | ASTM A36, A1011, A569, Q235, S275JR, SS304, SS400, Mild steel & Low carbon steel, etc |
| 5 | Surface Treatment | Black, self colour, hot dip galvanized, painted, spray coating |
| 6 | Grating Style | Plain / Smooth, Serrated /teeth, I bar, serrated I bar |
Plain bar grating features:
Intensity, light structure: strong grid bonding structure makes it
with high load, the structure characteristics, facilitate hoisting
light; Beautiful appearance, durable: hot-dip galvanized surface
treatment make it fairly good corrosion resistance, the surface
luster beautiful; Ventilation, lighting, heat dissipation,
explosion-proof, prevent slippery properties is good; Deposition
prevention dirt.
Plain steel bar grating applications:
Steel gratings are Widely used for Floorings, Catwalk, Stair tread,
Fenching, Vault bin floor, Ramp, Dock, Trench Cover, Window and
Machinery Safe guard, Wash rack, Ventilation Screen, Stoage rack,
Suspended Ceiling, Mezzaniness/decking, ect.
