50mm hole hot dipped galvanized flood control welded gabion mesh

welded gabion mesh details:

1) Material: Low-Carbon Iron Wire, Galvanized Iron Wire

2) Wire Diameter: 3-6 mm, such as 3.5 mm,4 mm,5 mm,6 mm

3) Zinc Coated: 200-300 g/m³

4) Surface Treatment: hot dip galvanized after welded

5) Spiral Binder wire diameter: 3.7 mm etc.

6) Mesh Hole: 5 x 5 cm,5 x 10 cm,7.5 x 7.5 cm,10 x 10 cm,10 x 20 cm

7) Box Size: 2 x 1 x 1 m, 2 x 1 x 0.5 m, 1 x 1 x 1 m, 1 x 1 x 0.5 m, 1 x 0.5 x 0.5 m, 0.3 x 0.3 x 0.3 m, as your request.

welded gabion mesh installation method:

Welded gabion basket is composed of welded mesh panels and spring steel lacing wire.

welded gabion mesh specifications:

welded gabion mesh features:

Economic. Just fill the stone into the gabions and seal it. Simple installation. No special technology needed; Weather proof under natural destroys corrosion resistant; No collapse even under big scope of deforming; Sludge in the stones is good for plant growing. Mixed to form a integrity with the natural environment; Good permeation can prevent the damage by hydrostatic; Less transport freight. It can be folded together for transport and further installation.

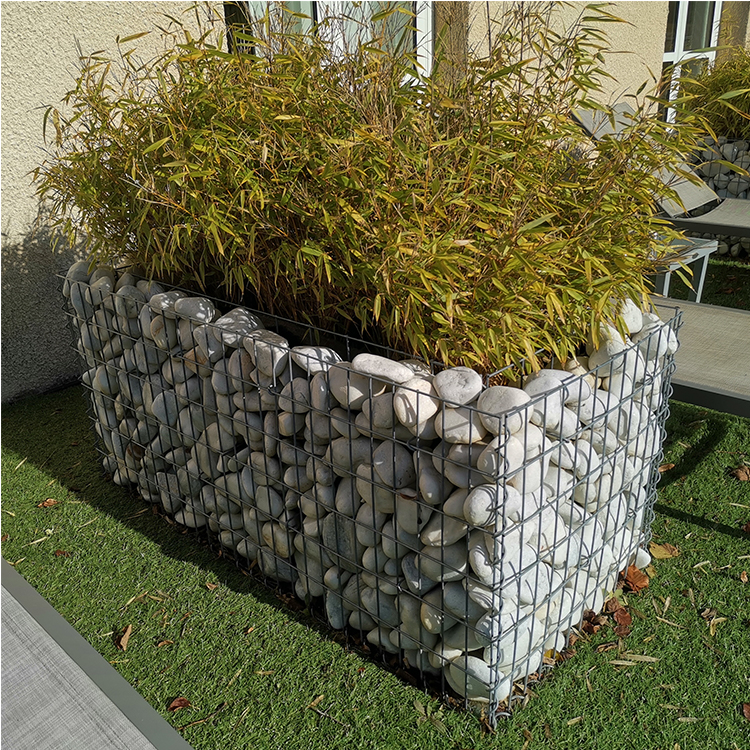

welded gabion mesh pictures:

We are a major manufacturer of wire mesh and wire fabric products in Hebei, China more than 20years. Our metal wire mesh products have been exported to Europe, the USA, the Middle East, Southeast Asia, Africa and several other parts of the world.

Concentrating on putting continued effort into maintaining product standards, our manufacture and sales quality management systems have been certified as ISO9001:2008 compliant by ISOQAR.

Operating to the principle of "Product quality is our life", we sincerely hope to have the opportunity to cooperate with you.
